XVR-301-16G3
-
Key Features
Model: XVR301-16G3
Output: HDMI & VGA
Input: 1x RJ45, 2x USB2.0
Compatible: Up to 8TB for each HDD
Outgoing Bandwidth: 64Mbps

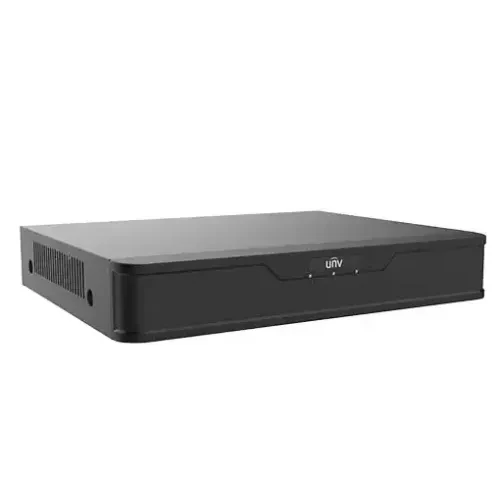

Uniview XVR301-16G3 16 Chanel 1 SATA XVR
The Uniview XVR301-16G3 16 Chanel 1 SATA XVR is a versatile and competent XVR capable of supporting a wide range of cameras and video formats. It is capable of recording and playing back H.265/H.264 video with high efficiency and quality. It can also send audio and video data through coaxial cable, making it simple to replace analog cameras without rewiring. Uniview XVR301-16G3 16 Chanel 1 SATA XVR supports adaptive access to TVI, AHD, CVI, CVBS, and IP cameras, allowing you to mix and match different brands and types of cameras. It has an 16-channel BNC input as well as a SATA interface for storage. It can simultaneously output video to HDMI and VGA screens at resolutions of up to 1920*1080, resulting in brilliant and colourful graphics.
Audio and Video | ||
IP Camera Input | 8-ch(up to 16-ch after analog camera conversion) | |
Display | ||
Interface | 1x HDMI, 1x VGA | |
Resolution | 5MP Lite/4MP Lite /1080P/1080P Lite/720P/CIF | |
Decoding Capacity | Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite @12fps IP: 1 x 4MP@30, 2 x 1080P@30 | |
Recording | ||
Resolution | Main Stream: 1080P Lite Main stream: 720P | |
Record Rate | 5MP Lite@6fps D1@6fps 4MP Lite@8fps D1@8fps 1080P Lite@12fps D1@12fps 720P@12fps D1@12fps | |
Bit Rate | Audio Sample Rate: 8KHz,16 bit per channel Audio Bit Rate: 64Kbps per channel | |
Playback And Backup | ||
Backup Mode | USB | |
Network | ||
Interface | 1x RJ45, 2x USB2.0 | |
Storage | ||
eSATA | Up to 8TB for each HDD | |
Auxiliary Interface | ||
USB | 2x USB2.0 1x RJ45 10M/100M self-adaptive Ethernet Interface | |
RS485 | 1x RS485 | |
Power | ||
Power Supply | DC12V/2A | |
Power Consumption | ≤ 10 W( without HDD ) | |
Construction | ||
Dimensions | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") | |
Gross Weight | ≤1.1 Kg ( 2.42lb ) | |
Warranty | ||
Manufacturing Warranty | 1 Year |
