XVR-301-04G3
-
Key Features
Model: XVR301-04G3
Output: HDMI & VGA
Input: 1x RJ45, 2x USB2.0
Compatible: Up to 8TB for each HDD
Outgoing Bandwidth: 48Mbps

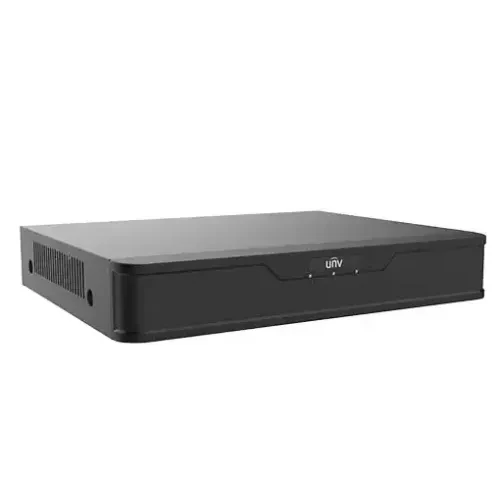

Uniview XVR301-04G3 4 Chanel 1 SATA XVR
The Uniview XVR301-04G3 4 Chanel 1 SATA XVR is a multifunctional and powerful XVR that can support a wide range of camera types and video formats. It can record and playback H.265/H.264 video as well as deliver audio and video data through coaxial cable, allowing you to update existing analog cameras without having to rewire them. Uniview XVR301-04G3 4 Chanel 1 SATA XVR supports adaptive access and can connect to TVI, AHD, CVI, CVBS, and IP cameras, enabling you to mix and match brands and types of cameras. It has four BNC input channels and one SATA storage port. Uniview XVR301-04G3 can concurrently output video to HDMI and VGA screens with resolutions up to 1920*1080, resulting in sharp and vivid images.
| Audio and Video | ||
| IP Camera Input | 2-ch(only IP up to 6ch), each channel up to 4MP | |
| Display | ||
| Interface | 1x HDMI, 1x VGA | |
| Resolution | 5MP Lite/4MP Lite /1080P/1080P Lite/720P/CIF | |
| Decoding Capacity | Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 | |
| Recording | ||
| Resolution | Main Stream: 1080P Lite Main stream: 720P | |
| Record Rate | 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps | |
| Bit Rate | Audio Sample Rate: 8KHz,16 bit per channel Audio Bit Rate: 64Kbps per channel | |
| Playback And Backup | ||
| Backup Mode | USB | |
| Network | ||
| Interface | 1x RJ45, 2x USB2.0 | |
| Storage | ||
| eSATA | Up to 8TB for each HDD | |
| Auxiliary Interface | ||
| USB | 2x USB2.0 | |
| Power | ||
| Power Supply | DC12V/2A | |
| Power Consumption | ≤ 8 W( without HDD ) | |
| Construction | ||
| Dimensions | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") | |
| Gross Weight | ≤1.1 Kg ( 2.42lb ) | |
| Warranty | ||
| Manufacturing Warranty | 1 Year | |
