HIKVISION NVR DS-7616NI-Q1 HIKVISION
11500Tk
-
Key Features
Model: Hikvision DS-7616NI-Q1
Video output at up to 4K (3840 × 2160) resolution
Up to 16 IP cameras can be connected
H.265+/H.265/H.264/H.264+
HDMI and VGA independent outputs

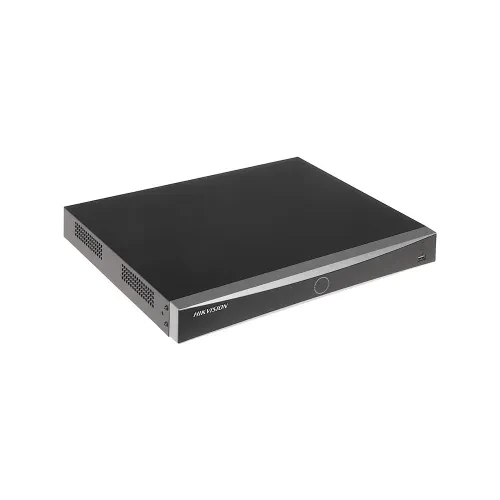

Hikvision DS-7616NI-Q1 16 Channel Network Video Recorder (NVR)
It supports H.265+/H.265/H.264/H.264+ video formats. It can be Connectable to the third-party network cameras. Up to 16 IP cameras can be connected HDMI/VGA simultaneous output (DS-7604NI-Q1). Its HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1).HDMI Video output at up to 4K (3840 × 2160) resolution. On the other hand, It has1 SATA interface connectable for recording and backup. H.265+ compression effectively reduces the storage space and costs by up to 75%.This NVR comes with 01 year warranty .Specification
| Audio and Video | ||
| IP Camera Input | Up to 16 IP cameras can be connected HDMI/VGA simultaneous output (DS-7604NI-Q1) | |
| Two-Way Talk | 1-ch, RCA (2.0 Vp-p, 1 k Ω) | |
| Display | ||
| Interface | HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1) | |
| Resolution | HDMI output resolution : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA output resolution : 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Decoding Capacity | 1-ch @ 8 MP / 4-ch @ 1080p/8-ch @ 1080p | |
| Recording | ||
| Compression | H.265+/H.265/H.264/H.264+ | |
| Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | |
| Record Rate | 160 Mbps | |
| Video Detection And Alarm | ||
| Alarm Input | 4/1 (optional) | |
| Playback And Backup | ||
| Sync Playback | Yes ( 16-ch )H.265+/H.265/H.264/H.264+ | |
| Playback Function | live view, storage, and playback | |
| Backup Mode | USB Device/Network | |
| Third Party Support | ||
| Third Party Support | Yes | |
| Network | ||
| Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | |
| Ethernet Port | 1 | |
| Network Function | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS | |
| Storage | ||
| HDD Mode | 1 SATA interface Up to 6TB capacity for each disk | |
| Auxiliary Interface | ||
| USB | 2 × USB 2.0 | |
| Power | ||
| Power Supply | 12 VDC | |
| Power Consumption | Power : ≤ 18W Consumption (without hard disk ) : ≤ 10 W | |
| Construction | ||
| Dimensions | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") | |
| Net Weight | disk) ≤ 1 kg (2.2 lb) | |
