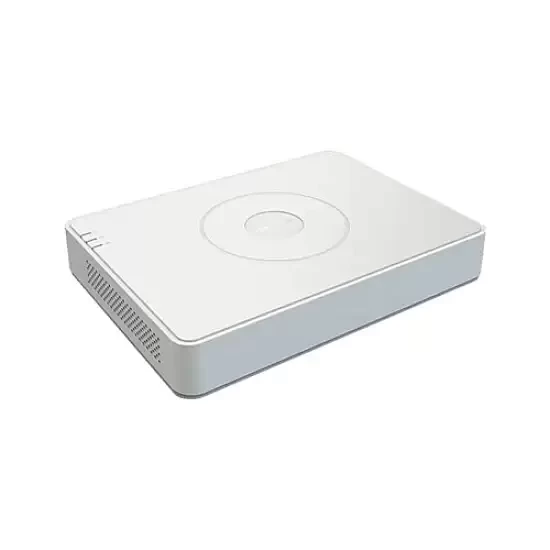

Hikvision iDS-7116HQHI-M1-S 16 Channel HD Mini 1U H.265 AcuSense DVR

Brand - Hikvision, Model - Hikvision iDS-7116HQHI-M1-S, Type - DVR, Number of Input Channel - 16 Channel, Video Input Channel (BNC) - 16 Channel BNC, Video Compression/Format - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264, Video Output (VGA) - 1 channel, Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, Video Output (DVI) - Not Specified, Video Output (HDMI) - 1 channel., Resolution: 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, Video Output (BNC) - 16 channel BNC interface (1.0 Vp-p, 75 ohm), supporting coaxitron connection, Video Recording Res. - 1920 x 1080, Max. Video Recording Res. - 3840 x 2160, Video Bit Rate - 32 Kbps to 6 Mbps, IP Video Input - 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution (Support H.265+/H.265/H.264+/H.264 IP cameras), Analog & HD-TVI Video Input - 3K@20 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps, Audio Input Channel (RCA) - 1 Channel, RCA (2.0 Vp-p, 1 K ohm), Audio Compression - G.711u, Audio Output Channel - 1 Channel, RCA (Linear, 1 K ohm), Two way Audio - 1 channel Input, RCA (2.0 Vp-p, 1 K ohm), Audio Bit Rate - 64 Kbps, Frame Rate - Main stream: When 1080p Lite mode not enabled:  For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps, Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N), Stream Type - Main Stream, Sub steram, Dual Stream Support - Yes, Live View / Playback Resolution - Not Specified, Decoding Capability - Not Specified, Synchronous Playback - 16 Channel, Network Protocols - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, Number HDD Interface (SATA) - 1 SATA HDD, Max HDD Support (GB,TB) - 10 TB, Max. Storage Support - 10TB, eSATA - No, Network Interface (RJ45) - 1 RJ-45 10 /100 /1000Mbps, Serial Interface - Not Specified, USB Port - 2 x USB 2.0, POE Interface - No, Remote Connections - 128, Main Processor - Not Specified, Display Split - Not Specified, CVBS Input - Yes, Incoming Bandwidth - 96Mbps, Outgoing Bandwidth - Not Specified, Array Type - Not Specified, Number of Arrays - Not Specified, Video Detection - Motion detection, Trigger Events - Not Specified, OSD - Not Specified, PTZ Controler - Not Specified, Backup Storage - Not Specified, Chassis - Not Specified, Operating System - Not Specified, Power Supply - 12 VDC, 1.9 A, Power Consumption - =15 W, Max. Power - Not Specified, Dimension - 285 x 210 x 45mm, Weight (Kg) - 1 kg, XVR Supported - Not Specified, Smart Phone Supported - Not Specified, Supported Camera Models - Not Specified, Feature - Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras, Support 4-ch line crossing detection and intrusion detection, H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs., Others - Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights, Quick search by object or event type is supported, Facial Detection and Capture Face picture detection, face picture search, Encoding Resolution: When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF., Part No - Not Specified, Package Includes - Not Specified, Warranty - 1 Year, Country of Origin - China, Made in/ Assemble - China
