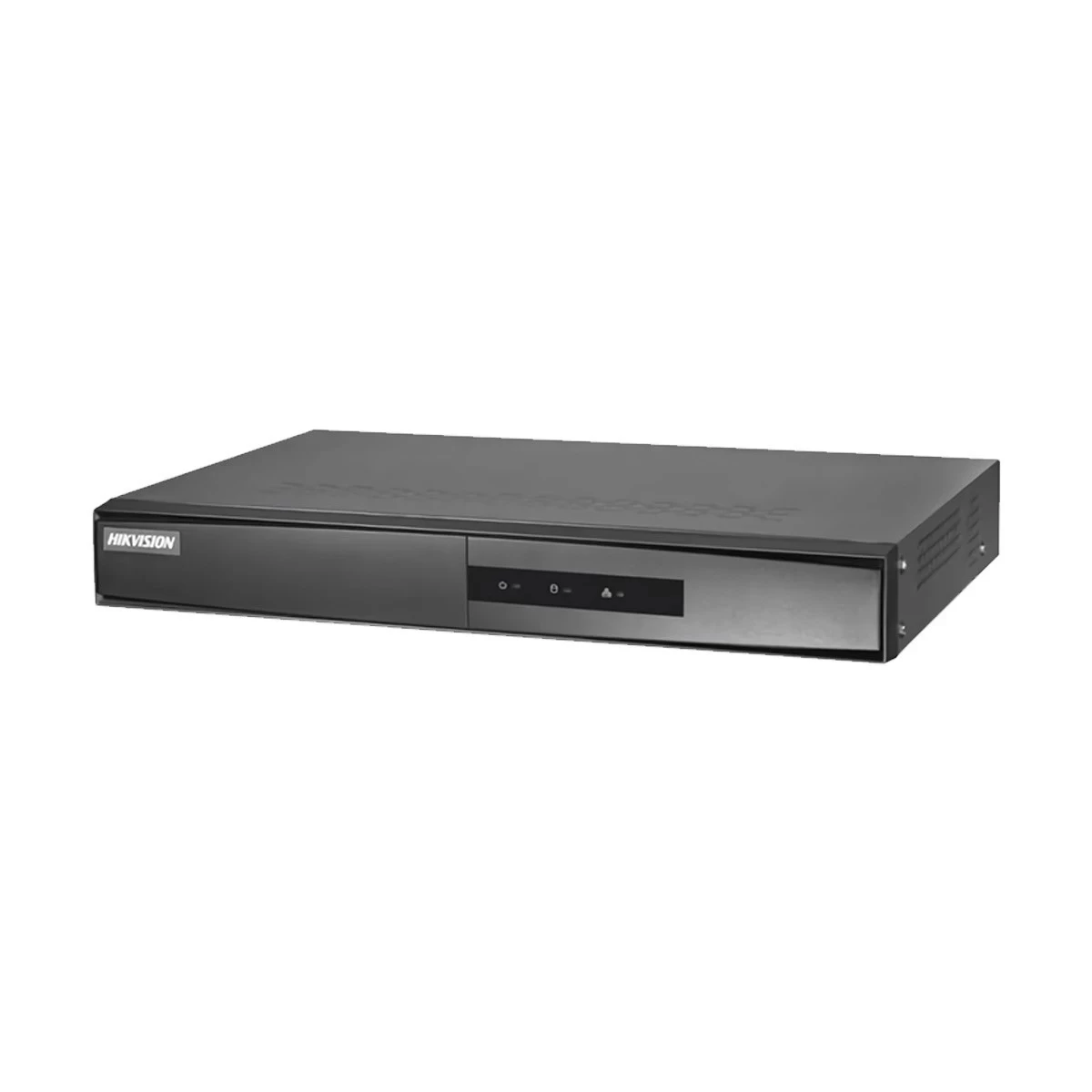

4-ch Mini 1U NVR

• Up to 4 channel IP cameras can be connected
• Supports decoding H.265+/H.265/H.264+/H.264 video formats
• Up to 4 MP high-definition live view, storage and playback
• Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected
• Up to 4-ch @ 1080p decoding capacity
• 1 HDD for continuous video recording
• Compatible with third-party network cameras
• Metal case for professional industry applications

Brand - Hikvision, Model - Hikvision DS-7104NI-Q1/M, Type - 4 Channel NVR, Number of Input Channel - 4 Channel, Video Output (VGA) - 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, Video Output (HDMI) - 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, Video Recording Res. - 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF, Max. Video Recording Res. - 4MP, IP Video Input - 4-channel, Up to 4 MP, Live View / Playback Resolution - 4 MP/ 3 MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF, Decoding Capability - 1-channel, 4 MP / 2-ch, 1080p, Synchronous Playback - 4-channel, Network Protocols - TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP, Number HDD Interface (SATA) - 1 SATA, Max HDD Support (GB,TB) - Up to 6TB capacity for each disk, Max. Storage Support - 6TB, Network Interface (RJ45) - 1, RJ-45 10M/100M self-adaptive Ethernet interface, USB Port - 2 x USB 2.0, Incoming Bandwidth - 40 Mbps, Outgoing Bandwidth - 60 Mbps, Chassis - 1U chassis, Power Supply - 12VDC, Power Consumption - -10 W, Dimension - 260 x 225 x 48mm, Weight (Kg) - -1kg, Feature - Metal case for professional industry applications, Compatible with third-party network cameras, 1 HDD for continuous video recording, Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected, Up to 6 MP high-definition live view, storage and playback, Others - Decoding format: H.265+/H.265/ H.264+/H.264, Working temperature: -10 to +55 degree C, Working humidity 10 to 90 %. Supports 4MP and ONVIF Protocol including camera., Part No - DS-7104NI-Q1/M, Warranty - 1 Year, Country of Origin - China, Made in/ Assemble - China
