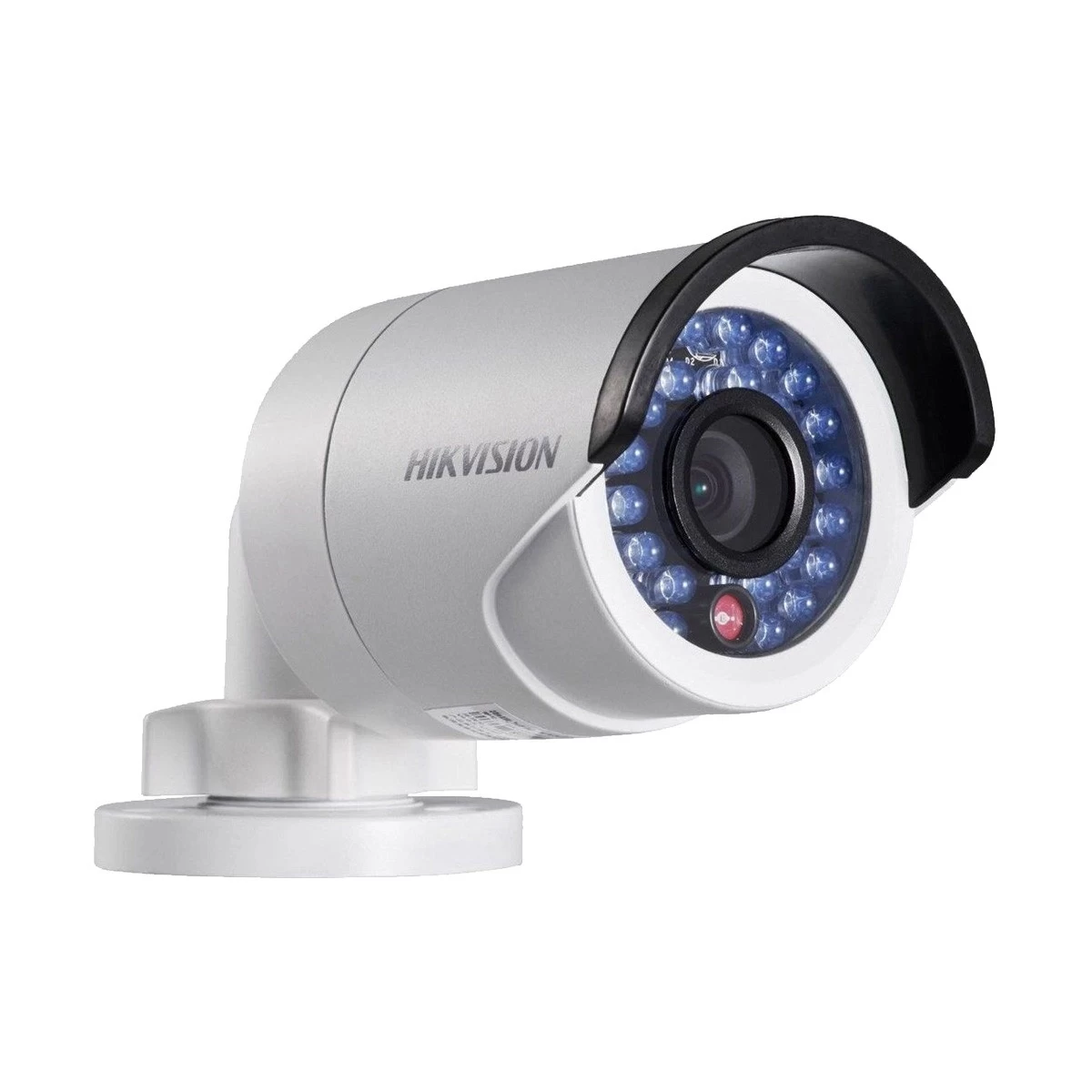

HIKVISION CCTV HD CAMERA DS-2CE16DOT-IRF-ECO 3.6MM

Brand
Category: CCTV Camera
SKU: Adt-25

1100Tk
    Quick Overview IR Range - 20 Meter Night Vision - Yes Mega Pixels - 2.0MP Form-Factor - Mini Bullet Usage - Indoor & Outdoor

Brand - Hikvision, Model - Hikvision DS-2CE16D0T-IRF, Usage - Indoor & Outdoor, Type - Bullet CC Camera, Form-Factor - Mini Bullet, Camera Type - Fixed, Field of View - 54 Degree - 103 Degree, Mega Pixel - 2.0MP, Resolution - 1080P, Max. Camera Resolution - 1920 x 1080, Signal System - PAL/NTSC, Shutter Time - 1/25(1/30)s to 1/50,000s,, Lens - 3.6mm, Lens Mount - M12, Lens Adjustment Range - Pan: 0 degree - 360 degree, Tilt: 0 degree - 180 degree, Rotation: 0 degree - 360 degree, Sensor Type - 2MP CMOS Image Sensor, Day & Night - ICR, Night Vision - Yes, WDR (Wide Dynamic Range) - DWDR, AGC - Low/middle/high, Video Output - 1 HD analog output, Function - Brightness, Sharpness, DNR, Mirror, Synchronization - Internal synchronization, Weather Proof - IP66, IR Range - 20 Meter, Body Color - White, Power Supply - 12 VDC+-15%, Power Consumption - Max. 4 W, Body Material - Metal, Dimension - 70 x 154.5 mm, Weight (Kg) - 400 gm, Feature - 2 megapixel high performance CMOS, Analog HD output, up to 1080p resolution, Day/Night switch, Smart IR, up to 20 m IR distance, Switchable TVI/AHD/CVI/CVBS, Others - Day& Night: IR cut filter with auto switch, 2.0MP HD Upto 1080p (20m) Indoor Bullet CC Camera, Min. illumination: 0.01 Lux (F1.2,AGC ON), 0 Lux with IR, Day/Night Mode: Smart/color/BW (Black and White), Backlight Compensation: Yes, DWDR: Yes, Language: English, Chinese, Switch Button: TVI/AHD/CVI/CVBS, Operating Conditions: -40 degree C - 60 degree C, Humidity 90% or less (non-condensation), Part No - DS-2CE16D0T-IRF, Recommended Accessories (Not Included) - 1. DVR, 2. Power adapter: 121.761.07 K2 Power adapter For CC camera (White), 3. Coaxial Cable: 121.130.05 Value Top RG59 CCTV coaxial cable with 2 power wire Black (1 Meter), 4. BNC Connector: 121.761.03 K2 BNC Connector for CC Camera, 5. Harddisk: 04.046.13 Toshiba 1TB 3.5 Inch SATA 7200RPM Desktop HDD #DT01ACA100/HDWD110UZSVA, 6. Monitor: 08.020.39 HP V194 18.5 Inch LED Monitor (V5E94AA), 7. Power Strip: 48.421.01 Many MTS-144 4 Port Power Strip, Warranty - 1 year, Country of Origin - China, Made in/ Assemble - China

General
BrandHikvision
ModelHikvision DS-2CE16D0T-IRF
UsageIndoor & Outdoor
TypeBullet CC Camera
Part NoDS-2CE16D0T-IRF
Camera
Mega Pixels2.0MP
Resolutions.1080P
Max. Camera Resolution1920 x 1080
Signal SystemPAL/NTSC
Shutter Time1/25(1/30)s to 1/50,000s
Sensor Type.2MP CMOS Image Sensor
Day & NightICR
Night VisionYes
Lens
Field of ViewHorizontal FOV: 79.6 degree, vertical FOV: 43.5 degree, diagonal FOV: 93.7 degree
Lens Type3.6mm
Lens MountM12
Lens Adjustment RangePan: 0 degree - 360 degree, Tilt: 0 degree - 180 degree, Rotation: 0 degree - 360 degree
WDR (Wide Dynamic Range)DWDR
AGCLow/middle/high
FunctionBrightness, Sharpness, DNR, Mirror
Capture DistanceUnmentioned
Image ModeSTD/HIGH-SAT
Noise Reduction2D DNR
Automatic ExposureDWDR/BLC/HLC/Global
Technical Info
Camera TypeFixed
Video Output1 HD analog output
SynchronizationInternal synchronization
Weather ProofIP66
IR Range20 Meter
CommunicationHIKVISION-C
Ingress ProtectionIP67
Physical Description
Form-FactorMini Bullet
Body ColorWhite
Body MaterialMetal
Dimensions70 x 154.5 mm
Weight (Kg)400 gm
Recommended Accessories (Not Included)1. DVR, 2. Power adapter: 121.761.07 K2 Power adapter For CC camera (White), 3. Coaxial Cable: 121.130.05 Value Top RG59 CCTV coaxial cable with 2 power wire Black (1 Meter), 4. BNC Connector: 121.761.03 K2 BNC Connector for CC Camera, 5. Harddisk: 04.046.13 Toshiba 1TB 3.5 Inch SATA 7200RPM Desktop HDD #DT01ACA100/HDWD110UZSVA, 6. Monitor: 08.020.39 HP V194 18.5 Inch LED Monitor (V5E94AA), 7. Power Strip: 48.421.01 Many MTS-144 4 Port Power Strip
Power
Power Supply12 VDC+-15%
Approx. Power ConsumptionMax. 4 W
Warranty
Warranty Details1 year
Additional Info
Night Vision ModeBlack and White
AudioNone
Feature2 megapixel high performance CMOS, Analog HD output, up to 1080p resolution, Day/Night switch, Smart IR, up to 20 m IR distance, Switchable TVI/AHD/CVI/CVBS
OthersDay& Night: IR cut filter with auto switch, 2.0MP HD Upto 1080p (20m) Indoor Bullet CC Camera, Min. illumination: 0.01 Lux (F1.2,AGC ON), 0 Lux with IR, Day/Night Mode: Smart/color/BW (Black and White), Backlight Compensation: Yes, DWDR: Yes, Language: English, Chinese, Switch Button: TVI/AHD/CVI/CVBS, Operating Conditions: -40 degree C - 60 degree C, Humidity 90% or less (non-condensation)
Specialty4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
Country Of OriginChina
Made in/ AssembleChina
