DH-HAC-HFW1209CLP-LED

Brand
Category: CCTV Camera
SKU: Adt-86

1850Tk
    Features Max. 30fps@1080P HD and SD output switchable 3.6mm fixed lens Smart 20m IR

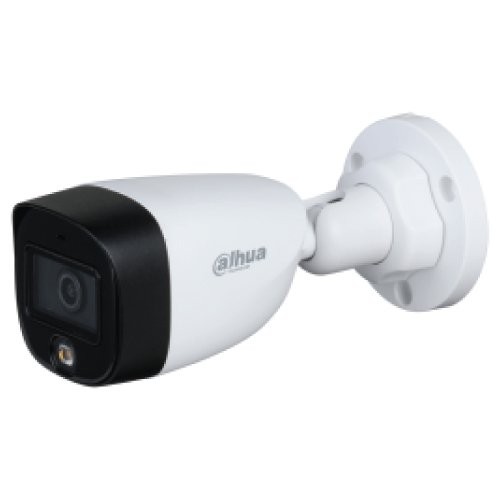

Dahua DH-HAC-HFW1209CLP-LED Bullet Camera

The product in question is a versatile and high-quality surveillance camera designed for a range of security applications. With a compact yet robust design, it offers an impressive array of features and specifications.This camera features a fixed lens with optional 2.8mm focal length, offering wide-angle views with diagonal, horizontal, and vertical angles of 103.6° × 86.9° × 46.3° at 3.6mm, making it ideal for capturing expansive areas. Its 2.16MP CMOS image sensor ensures crisp and clear images with resolutions of 1080P (1920 × 1080), 720P (1280 × 720), and 960H (960 × 576/960 × 480). The lens has a maximum aperture of F1.6, providing excellent low-light performance.The camera offers multiple video output options, including CVI, AHD, TVI, and CVBS, allowing compatibility with various monitoring systems. Its smart IR technology automatically adjusts the infrared illumination based on the scene, ensuring high-quality night vision.In terms of durability, the camera is IP67 rated, making it weather-resistant and suitable for outdoor use. The metal front cover and sturdy plastic construction guarantee its longevity. The camera is easy to install and maintain, with a user-friendly on-screen display (OSD) and multi-language support.With its certification for compliance, this camera meets international standards. It operates in a wide temperature range from -40°C to +60°C and offers a 1-year warranty for peace of mind. Overall, this surveillance camera is an excellent choice for those seeking reliable and high-performance security monitoring.

Specification
Lens
Angle of View2.8 mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical);
3.6 mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical)
Focal Length3.6mm (2.8mm Optional)
Lens TypeFixed lens / Fixed iris
Max ApertureF1.6
Video
BLC ModeBLC / HLC / DWDR
Day/NightAuto (ICR) / Manual
Frame RateCVI:
PAL: 1080P@25fps; 720P@25fps;
NTSC: 1080P@30fps; 720P@30fps;
AHD:
PAL: 1080P@25fps;
NTSC: 1080P@30fps
TVI:
PAL: 1080P@25fps;
NTSC: 1080P@30fps
CVBS:
PAL: 960H;
NTSC: 960H
Gain ControlAGC
Noise Reduction2D
OSDMulti-language
Resolution1080P (1920 × 1080); 720P (1280 × 720); 960H (960 × 576/960 × 480
Smart IRAuto / Manual
Video Output1-channel BNC high definition video output / CVBS video output (Can switch)
WDRDWDR
White BalanceAuto / Manual
Camera Features
Image Sensor1/2.8 inch 2.16 Mega Pixels CMOS
Pixel1920 (H)×1080 (V), 2MP
General
CertificationCE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Dimensions161.3 mm × 69.7 mm × 70.0 mm (6.35" × 2.75" × 2.75")
EnvironmentOperating Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance
IP67
InterfaceAudio Interface N/A
PowerPower Supply12V DC ±30%
Power Consumption Max 3.0W (12V DC, IR on)
WeightNet Weight 0.20 Kg (0.44 lb)
Gross Weight 0.28 Kg (0.62 lb)
MaterialMetal front cover + plastic main body + plastic bracket
Warranty Information
Warranty1 Year
