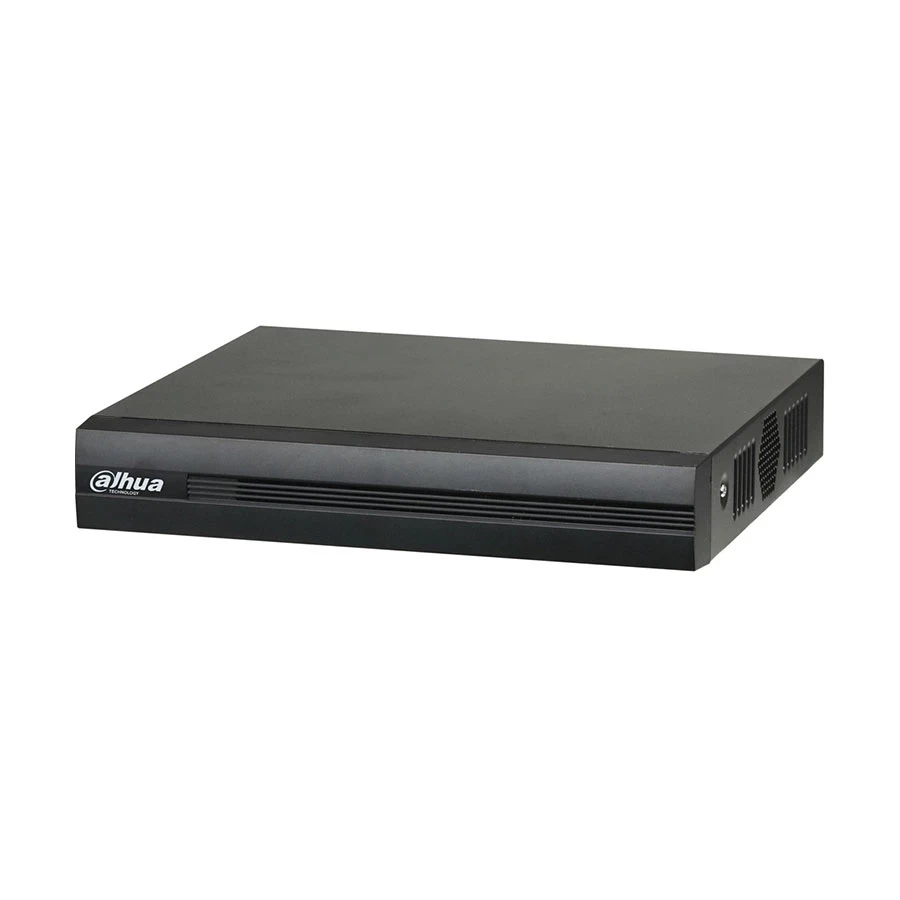

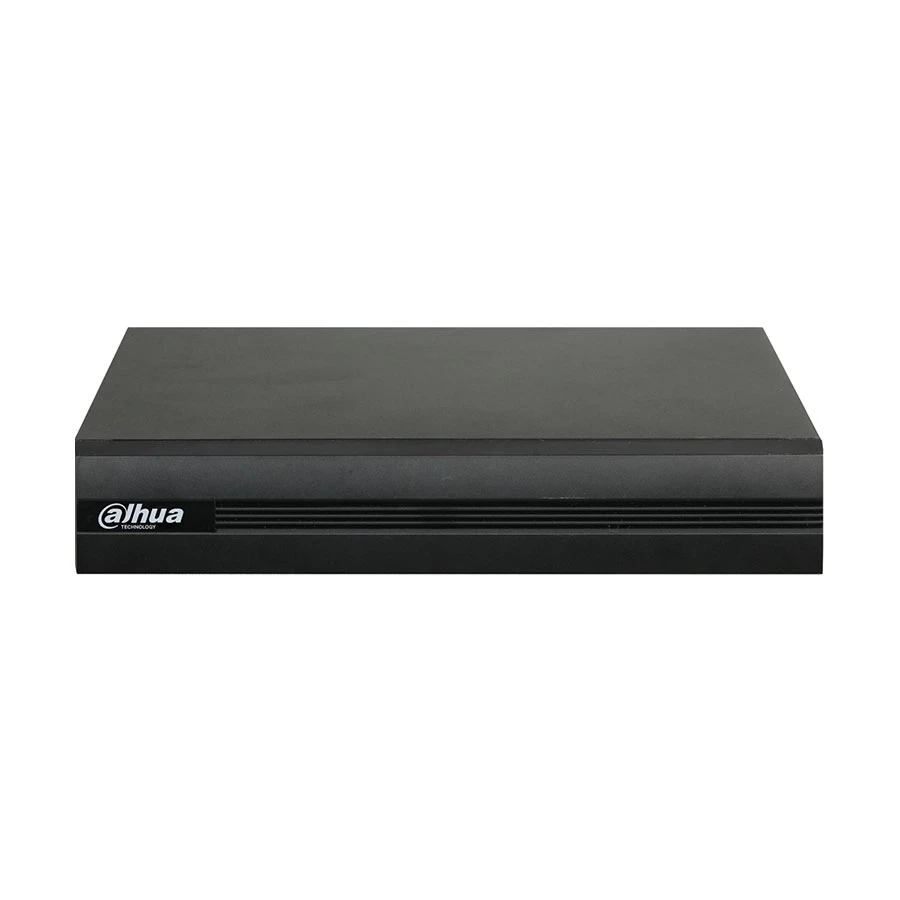

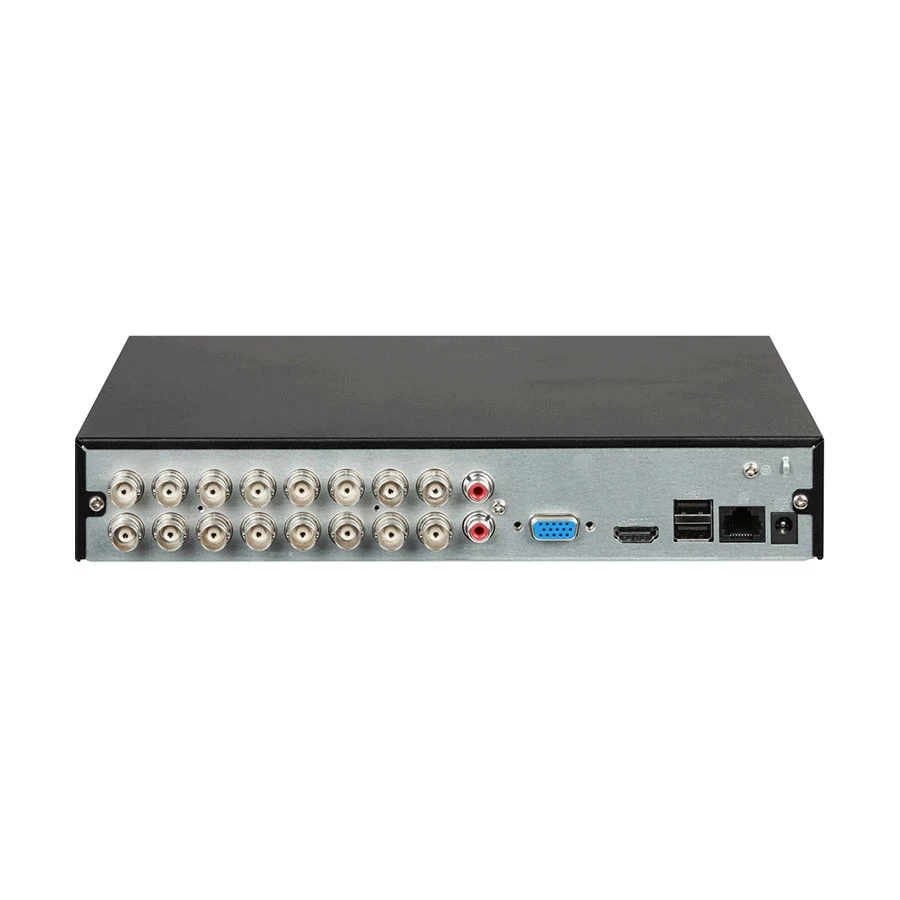

DAHUA XVR DH-XVR1B16-I (2M SUPPORT)

Features of Dahua DH-XVR1B16-I DVR/NVR/XVR In Bangladesh

Brand - Dahua, Model - Dahua DH-XVR1B16-I, Type - XVR, Number of Input Channel - 16 Channel, Video Input Channel (BNC) - 16 Channel, BNC, Video Compression/Format - H.265+; H.265; H.264+; H.264, Video Output (VGA) - 1920 x 1080, 1280 x 1024, 1280 x 720, Video Output (HDMI) - 1920 x 1080, 1280 x 1024, 1280 x 720, Video Recording Res. - 1920 x 1080, Max. Video Recording Res. - 1920 x 1080, Video Bit Rate - 32 kbps - 6144 kbps, Analog & HD-TVI Video Input - 16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured., Audio Input Channel (RCA) - 1-channel RCA, Audio Compression - G.711a; G.711u; PCM, Audio Output Channel - 1-channel RCA, Two way Audio - Yes, Audio Bit Rate - 64 kbps, Frame Rate - PAL: 1 fps/s - 25 fps/s, NTSC: 1 fps/s - 30 fps/s, Stream Type - Main Stream, Dual Stream, Sub Stream, Dual Stream Support - Yes, Synchronous Playback - 1/4/9/16, Network Protocols - HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P, Number HDD Interface (SATA) - 1 SATA, Max HDD Support (GB,TB) - 16TB, Max. Storage Support - 16TB, Network Interface (RJ45) - 1, USB Port - 2 x USB 2.0, Incoming Bandwidth - 64Mbps, Outgoing Bandwidth - 64Mbps, Interoperability - ONVIF 21.06; CGI Conformant, Video Detection - General, motion detection, alarm, Backup Storage - USB device and network, Operating System - Embedded Linux, Power Supply - 12 VDC, 2 A, Approx. Power Consumption - 10W, Dimension - 260 x 231.4 x 47.6mm, Weight (Kg) - 0.89 kg, Smart Phone Supported - Android, iOS, Feature - General Alarm: Motion detection, video loss, tampering Anomaly Alarm: No disk, disk error, low space, offline, ip conflict, MAC conflict Alarm Linkage:Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email. Playback Mode: Instant playback, general playback, event playback, tag playback. H.265+/H.265 dual-stream video compression. Supports Full-channel AI-Coding. Supports HDCVI/AHD/TVI/CVBS/IP video inputs . Max 18 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps Incoming Bandwidth . Long transmission distance over coax cable. Up to 8 channels video stream (analog channel) SMD Plus, Others - Camera Input: 1. CVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 2. TVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 3. AHD: 1080p@ 25/30 fps, 720p@ 25/30 fps 4. CVBS: PAL/NTSC. Encoding Capacity:Main Stream: the 1st channel 1080N/720p (1 fps-25/30 fps), others 1080N/720p (1 fps-15 fps); 960H/D1/CIF(1 fps-25/30 fps) Sub stream: CIF (1 fps-7 fps). Third-party Camera Access:ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung. Browser: Chrome, IE9 or later, Firefox. Operating Temperature: -10 degree C to +55 degree C Operating Humidity: 0%-90% (RH).Certifications:     FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024, Warranty - 1 Year, Country of Origin - China, Made in/ Assemble - China
