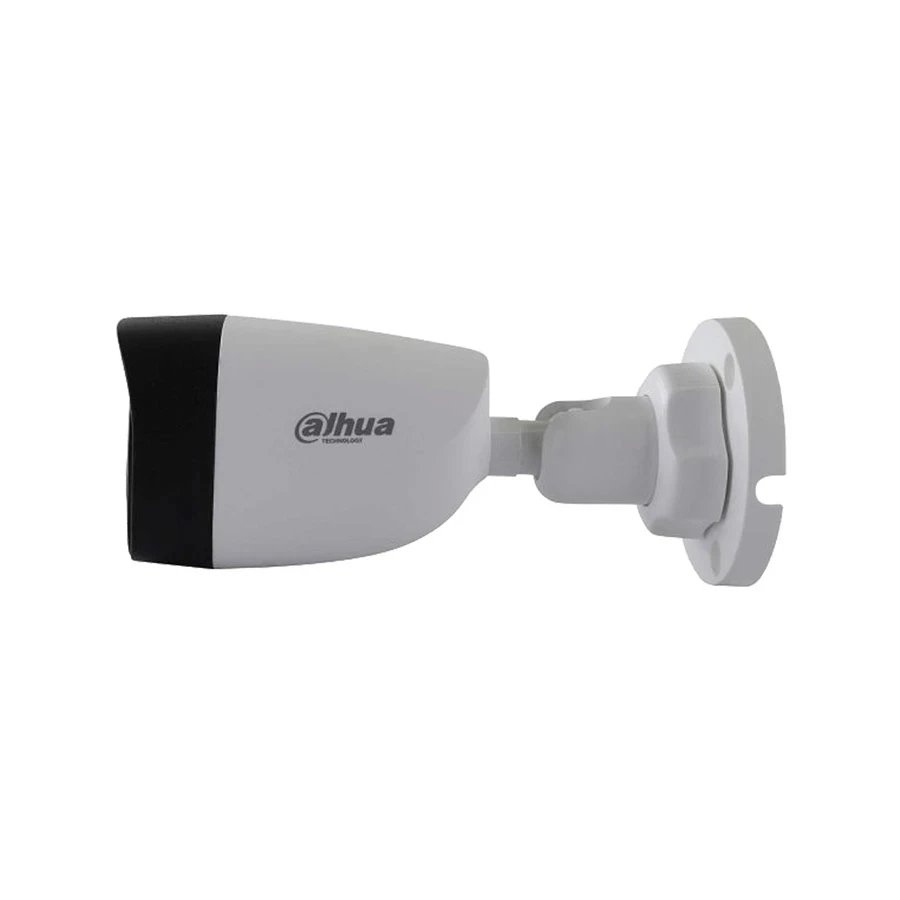

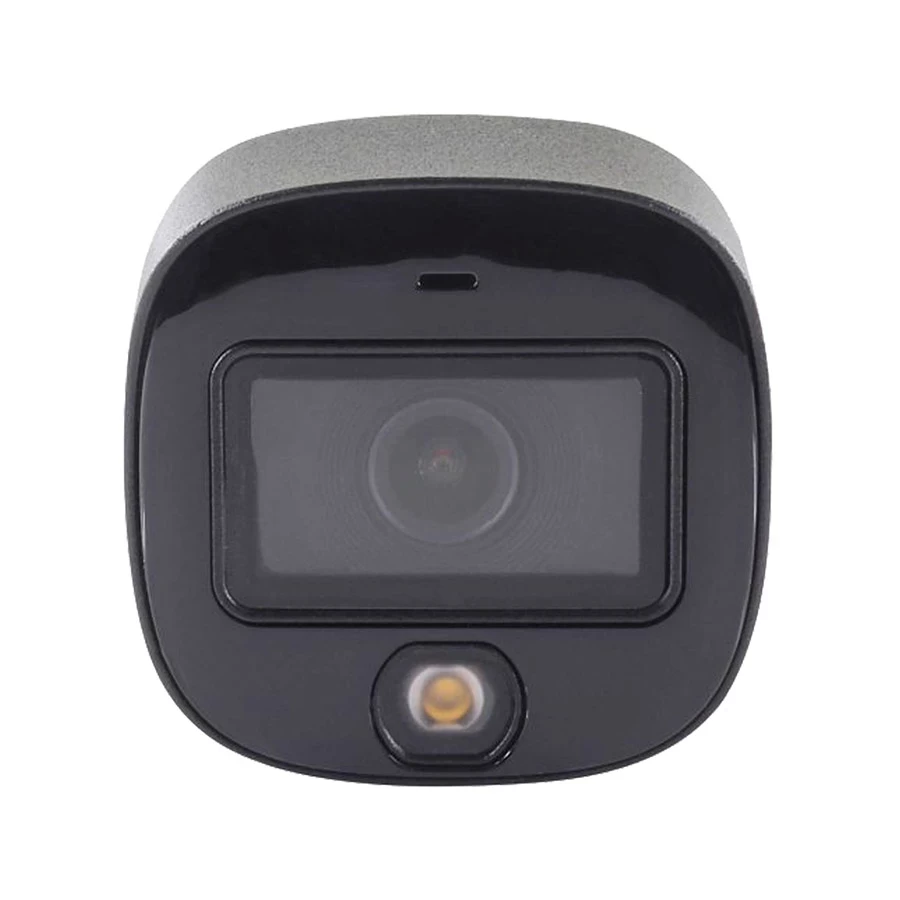

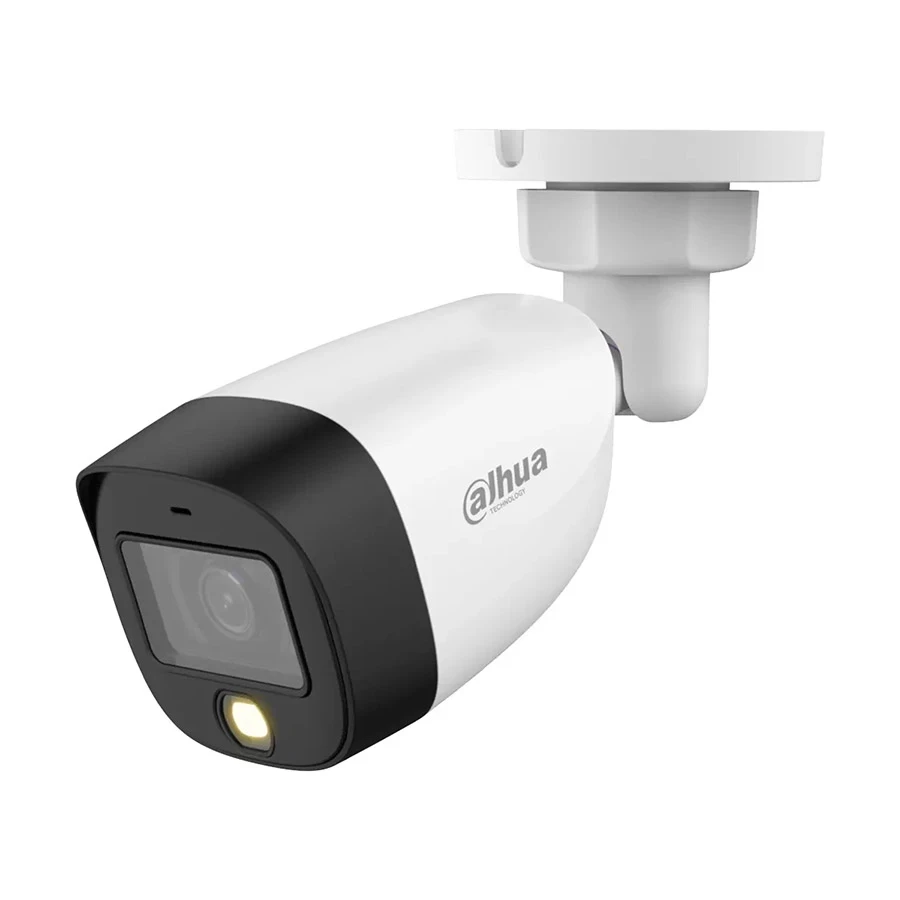

DAHUA DH-HAC-HFW1509CP-A-LED 5MP FULL COLOR AUDIO

-
Quick Overview
IR Range - 20 Meter
Night Vision - Yes
Mega Pixels - 5.0MP
Form-Factor - Bullet
Usage - Outdoor
Features of Dahua DH-HAC-HFW1509CP-A-LED CC Camera In Bangladesh
Brand - Dahua, Model - Dahua DH-HAC-HFW1509CP-A-LED, Usage - Outdoor, Type - Bullet CC Camera, Form-Factor - Bullet, Camera Type - Fixed, Field of View - 88 Degree (H), 46 Degree (V), 104 Degree (D), Mega Pixel - 5.0MP, Resolution - 5M (2880 x 1620), 4M (2560 x 1440), 1080p (1920 x 1080), 960H (960 x 576/960 x 480), Max. Camera Resolution - 2880 x 1620, Signal System - PAL, S/N Ratio - 65 dB, Shutter Time - 1/3s - 1/100000s (PAL), Lens - 3.6mm, Lens Mount - M12, Lens Adjustment Range - Pan: 0 degree - 360 degree, Tilt: 0 degree - 90 degree, Rotation: 0 degree - 360 degree, Sensor Type - 5MP CMOS, Day & Night - Color, Night Vision - Yes, Night Vision Mode - Color, WDR (Wide Dynamic Range) - 120 dB, Video Output - Video output choices of CVI/TVI/AHD/CVBS by one BNC port, Audio - Only Mic, Audio Type - Built-in mic, Capture Distance - 20 Meter, Noise Reduction - 3D NR, Automatic Exposure - BLC/HLC/WDR/HLC-Pro, Weather Proof - IP67, IR Range - 20 Meter, Privacy Mask - Off/On (8 area, rectangle), Ingress Protection - IP67, Body Color - White, Power Supply - 12 VDC+-30%, Approx. Power Consumption - 4.4W, Body Material - Metal & Plastic, Dimension - 161.3 x 69.7 x 70.0mm, Weight (Kg) - 0.23 kg, Warranty - 1 year, Country of Origin - China, Made in/ Assemble - China
General
BrandDahuaModelDahua DH-HAC-HFW1509CP-A-LED
UsageOutdoor
TypeBullet CC Camera
Camera
Mega Pixels5.0MPResolutions.5M (2880 x 1620), 4M (2560 x 1440), 1080p (1920 x 1080), 960H (960 x 576/960 x 480)
Max. Camera Resolution2880 x 1620
Signal SystemPAL
S/N Ratio65 dB
Shutter Time1/3s - 1/100000s (PAL)
Sensor Type.5MP CMOS
Day & NightColor
Night VisionYes
Lens
Field of View88 Degree (H), 46 Degree (V), 104 Degree (D)Lens Type3.6mm
Lens MountM12
Lens Adjustment RangePan: 0 degree - 360 degree, Tilt: 0 degree - 90 degree, Rotation: 0 degree - 360 degree
WDR (Wide Dynamic Range)120 dBCapture Distance20 Meter
Noise Reduction3D NR
Automatic ExposureBLC/HLC/WDR/HLC-Pro
Technical Info
Camera TypeFixedVideo OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio TypeBuilt-in mic
Weather ProofIP67
IR Range20 Meter
Privacy MaskOff/On (8 area, rectangle)
Ingress ProtectionIP67
Physical Description
Form-FactorBulletBody ColorWhite
Body MaterialMetal + Plastic
Dimensions161.3 x 69.7 x 70.0mm
Weight (Kg)0.23 kg
Power
Power Supply12 VDC+-30%Approx. Power Consumption4.4W
Warranty
Warranty Details1 yearAdditional Info
Night Vision ModeColorAudioOnly Mic
Country Of OriginChina
Made in/ AssembleChina
