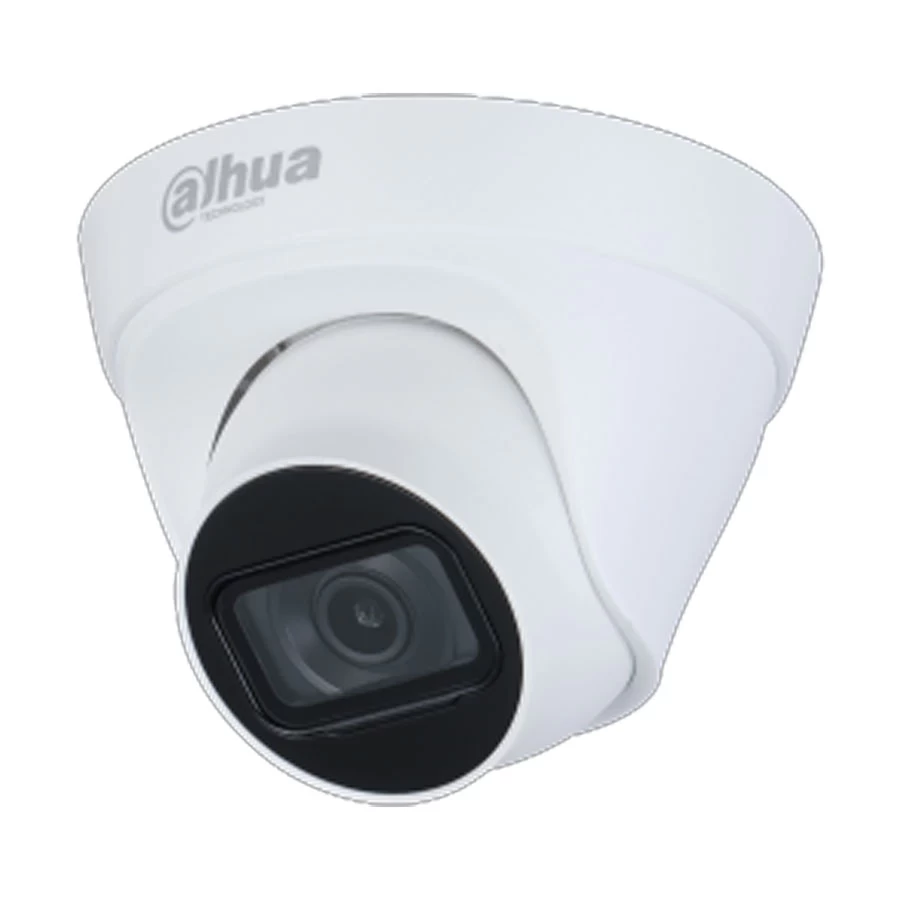

DAHUA CCTV IP CAMERA DH-IPC-HDW1230T1-S5 (2.8MM) (2MP IR

Features of Dahua IPC-HDW1230T1-S5 IP Camera In Bangladesh

Brand - Dahua, Model - Dahua IPC-HDW1230T1-S5, Usage - Indoor, Type - IP Camera, Form-Factor - Dome, Camera Type - Fixed, Mega Pixel - 2.0MP, Max. Camera Resolution - 1920 x 1080, Image Sensor - 1/2.8 Inch CMOS, Scanning System - Progressive, Lens - 2.8mm, Lens Mount - M12, Lens Adjustment Range - Pan : 0 Degree to 355 Degree, Tilt : 0 Degree to 78 Degree, Rotation: 0 Degree to 360 Degree, Focal length - 2.8mm, Video Type - H.265; H.264; H.264B; MJPEG (only supported by the sub stream), Resolutions - 1080p (1920 x 1080); 1.3M(1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240), Shutter Speed - Auto/Manual 1/3 s - 1/100000 s, Day & Night - Auto (ICR)/Color/B/W, Night Vision - Yes, Dual-Stream - Yes, Frame Rate - Main Stream: 1920 x 1080 (1 fps - 25/30 fps), Sub stream: 704 x 576 (1 fps - 25 fps) 704 x 480 (1 fps - 30 fps), Interface - 1 x RJ-45 (10/100 Base-T), Security - Video encryption; configuration encryption; Digest; WSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade, Storage Type - FTP, Wide Dynamic Range (WDR) - DWDR, Motion Detection - OFF/ON (4 areas, rectangular), Dust Protection - IP67, Water Protection - IP67, Viewing Angle - Horizontal: 102 Degree; Vertical: 54 Degree; Diagonal: 120 Degree, Working Distance - 30 Meter, Protocols - IPv4; IPv6; HTTP; HTTPS; TCP; UDP; PRA; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; multicast, Power Supply - 12V DC/PoE (802.3af), Power Consumption - Basic power consumption: 1.4W (12V DC); 2.2W (PoE) Max. power consumption (ICR + H.265+IR intensity): 3.3W (12V DC); 4.3W (PoE), Operating Temperature - -40 Degree C to +60 Degree C (-40 Degree F to +140 Degree F)/less than - 95%, Storage Temperature - -40 Degree C to +60 Degree C (-40 Degree F to +140 Degree F), Body Material - Inner core: Metal + Plastic, Cover: Plastic, Decoration ring: Plastic, Pedestal: Plastic, Dimensions - 85.5 x 109mm, Weight (gm) - 240gm, Others - ROM: 16MB, RAM: 64MB, min. illumination: 0.01 Lux @F2.0, Y/N Ratio: 56 dB, Illumination Distance: 30 m (98.4 ft), Illuminator On/Off Control: Auto/Manual, Illuminator Number: 1 (IR LED), Max. Squeeze: 2.8 mm: F2.0, Close Focus Distance: 2.8 mm: 0.5 m (1.6 ft), Smart Codec: Smart H.265+/Smart H.264+. Bit Rate Control: CBR/VBR, Video Bit Rate: H.264: 32kbps - 6144kbps, H.265: 12kbps - 6400kbps. BLC: Yes, HLC: Yes. White Balance: Auto/natural/street lamp/outdoor/manual/regional custom. Gain control: Auto/Manual, Noise reduction: 3D NR. Region of Interest (RoI): Yes (4 areas), Smart Illumination: Yes, Image Rotation: 0 Degree/90 Degree/180 Degree/270 Degree (Support 90 Degree/270 Degree with 1080p resolution and lower). Mirror: Yes, Privacy Masking: 4 areas. Alarm Event: Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception. SDK and API: Yes. Interoperability: ONVIF (Profile S/Profile T); CGI; P2P; Genetec. User/Host: 6 (Total bandwidth: 36M). Browser: IE, Chrome, Firefox. Management Software: Smart PSS; DSS; DMSS. Mobile Client: IOS; android, Specialty - 2MP, 1/2.8 Inch CMOS image sensor, low illuminance, high image definition. Outputs max. 2MP (1920 x 1080) @25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in efficient IR illuminator, and the max. illumination distance is 30 m. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access. 12V DC/PoE power supply. IP67 protection., Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
