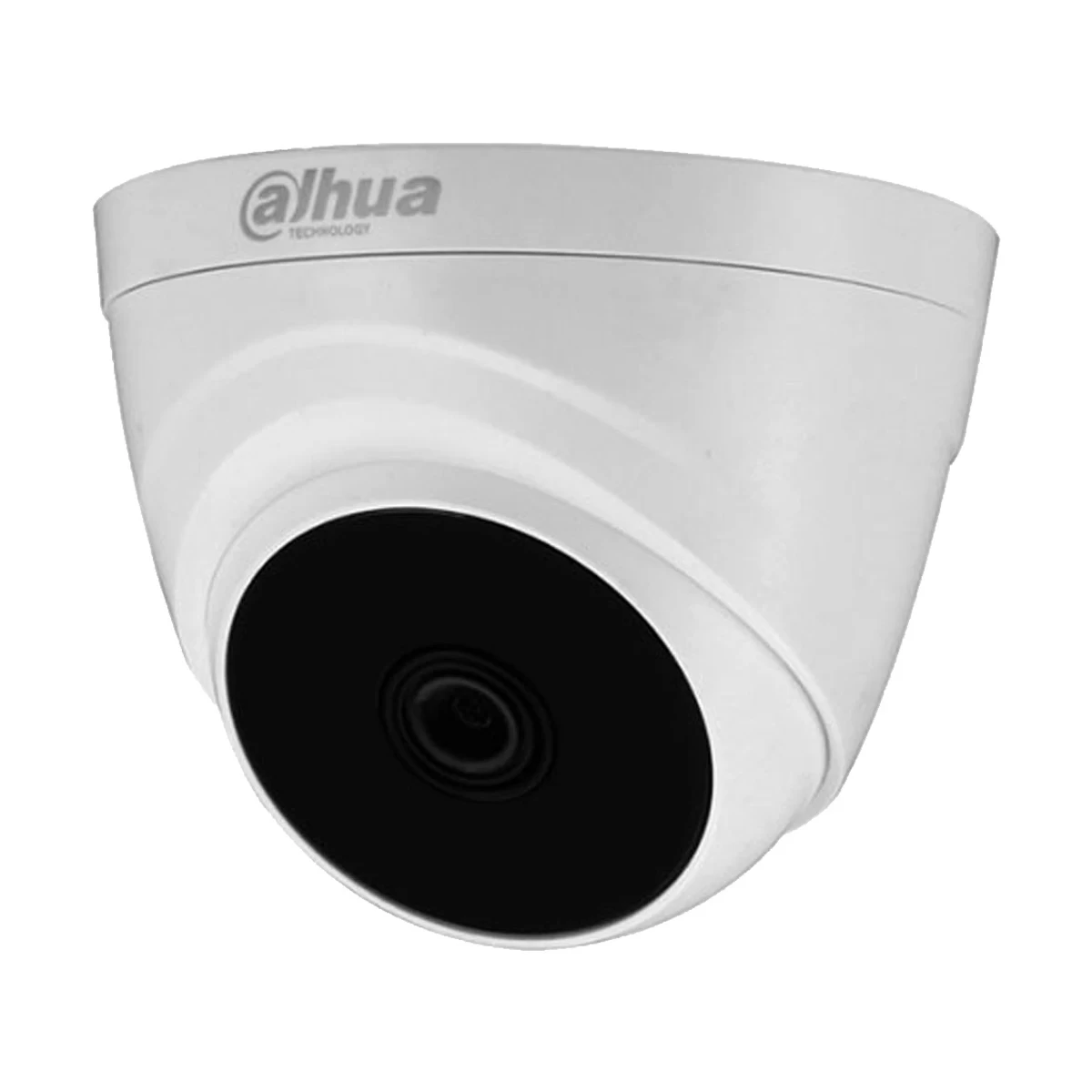

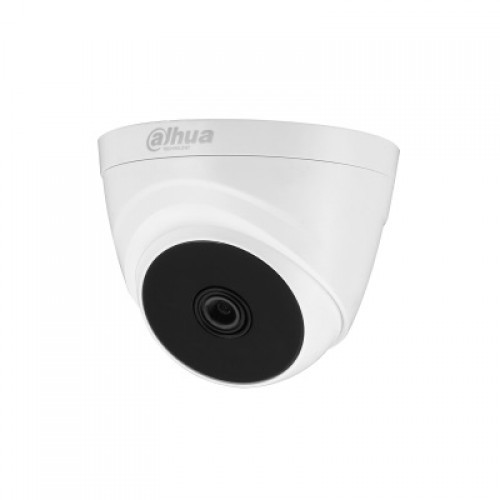

DAHUA CCTV HD CAMERA DH-HAC-T1A21P DOME 2 MP (20

Brand
Category: CCTV Camera
SKU: Adt-76

1550Tk
    Quick Overview IR Range - 20 Meter Night Vision - Yes Mega Pixels - 2.0MP Form-Factor - Dome Usage - Indoor

Brand - Dahua, Model - Dahua DH-HAC-T1A21P, Usage - Indoor, Type - CC Camera, Form-Factor - Dome, Camera Type - Fixed, Field of View - 54.7 Degree - 103 Degree, Mega Pixel - 2MP, Resolution - 1080p, Max. Camera Resolution - 1920 x 1080, S/N Ratio - 65dB, Shutter Time - PAL: 1/25-1/100000s, NTSC: 1/30-1/100000s, Lens - 3.6mm, Lens Mount - Board-in, Lens Adjustment Range - Pan: 0 degree - 360 degree, Tilt: 0 degree - 78 degree, Rotation: 0 degree - 360 degree, Sensor Type - 1/2.7 inch CMOS, Day & Night - Auto (ICR) / Manual, Night Vision - Yes, Night Vision Mode - Color, WDR (Wide Dynamic Range) - DWDR, AGC - Yes, Video Output - 1-channel BNC video output, Noise Reduction - 2D, IR Range - 20 Meter, Body Color - White, Power Supply - 12V DC +-30%, Approx. Power Consumption - 2.3W, Body Material - Plastic, Dimension - 85 x 85 x 69mm, Weight (Kg) - 0.09kg, Others - Minimum Illumination: 0.04Lux/F1.85, 30IRE, 0Lux IR on, IR On/Off Control: Auto / Manual, Max Aperture: F1.85, Close Focus Distance: 800mm, OSD Menu: Multi-language, BLC Mode: BLC / HLC / DWDR, White Balance: Auto / Manual, Smart IR: Auto / Manual, Operating Conditions: -40 degree C - +60 degree C & 95% RH, Storage Conditions: -40 degree C - +60 degree C & 95% RH, Certifications: CE, FCC, Specialty - Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Cooper series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high costperformance makes the camera an ideal choice for SMB solutions., Part No - DH-HAC-T1A21P, Warranty - 1 Year, Country of Origin - China, Made in/ Assemble - China

General
BrandDahua
ModelDahua DH-HAC-T1A21P
UsageIndoor
TypeCC Camera
Part NoDH-HAC-T1A21P
Camera
Mega Pixels2.0MP
Resolutions.1080p
Max. Camera Resolution1920 x 1080
Signal SystemPAL/NTSC
S/N Ratio65dB
Shutter TimePAL: 1/25-1/100000s, NTSC: 1/30-1/100000s
Sensor Type.1/2.7 inch CMOS
Day & NightAuto (ICR) / Manual
Night VisionYes
Lens
Field of View93 Degree(H), 54.7 Degree(V), 103 Degree(D)
Lens Type3.6mm
Lens MountBoard-in
Lens Adjustment RangePan: 0 degree - 360 degree, Tilt: 0 degree - 78 degree, Rotation: 0 degree - 360 degree
WDR (Wide Dynamic Range)DWDR
AGCYes
Capture DistanceUnmentioned
Noise Reduction2D
Technical Info
Camera TypeFixed
Video Output1-channel BNC video output
IR Range20 Meter
Privacy MaskYes
Physical Description
Form-FactorDome
Body ColorWhite
Body MaterialPlastic
Dimensions85 x 85 x 69mm
Weight (Kg)0.09kg
Power
Power Supply12V DC +-30%
Approx. Power Consumption2.3W
Warranty
Warranty Details1 year
Additional Info
Night Vision ModeColor
AudioNone
FeatureMax. 30 fps@1080p, Max. IR length 20 m, Smart IR
OthersMinimum Illumination: 0.04Lux/F1.85, 30IRE, 0Lux IR on, IR On/Off Control: Auto / Manual, Max Aperture: F1.85, Close Focus Distance: 800mm, OSD Menu: Multi-language, BLC Mode: BLC / HLC / DWDR, White Balance: Auto / Manual, Smart IR: Auto / Manual, Operating Conditions: -40 degree C - +60 degree C & 95% RH, Storage Conditions: -40 degree C - +60 degree C & 95% RH, Certifications: CE, FCC
SpecialtyExperience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Cooper series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high costperformance makes the camera an ideal choice for SMB solutions.
Country Of OriginChina
Made in/ AssembleChina
